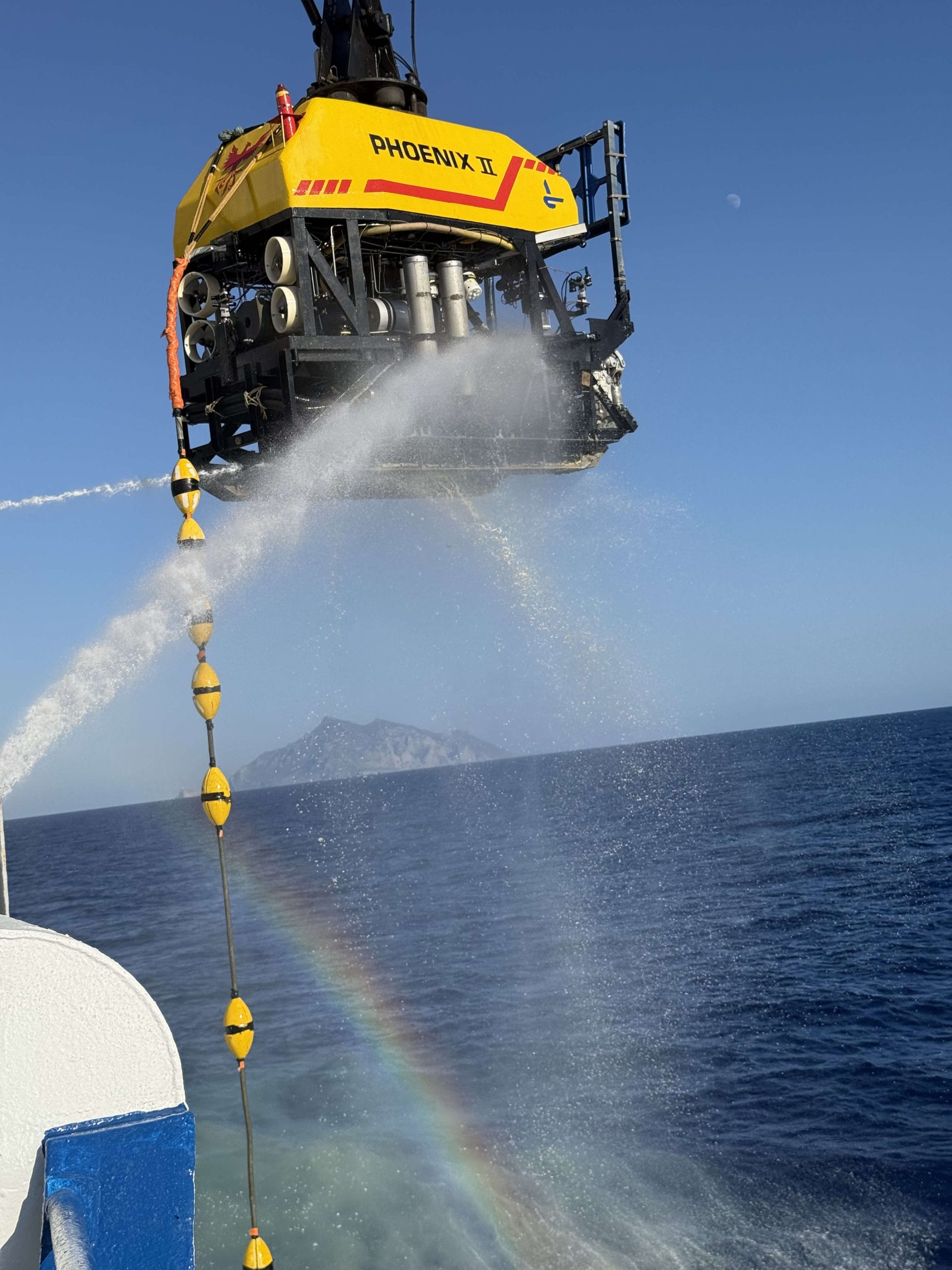

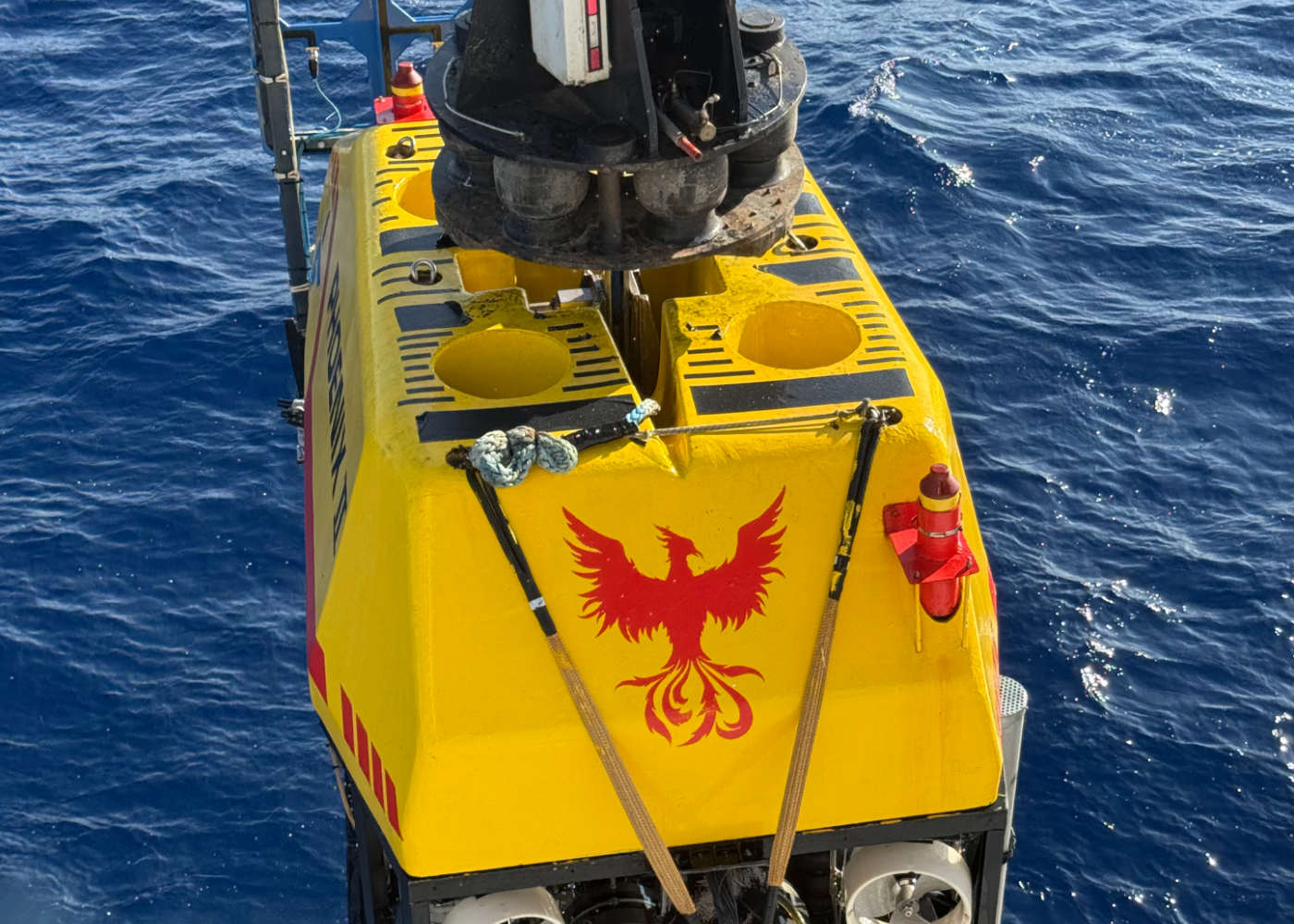

ROV Phoenix II
The Phoenix II is a remote-controlled underwater vehicle (ROV – Remote Operated Vehicle) designed for advanced maintenance and repair operations on submarine cables, operating at a depth of up to 2,000 metres.
Operational Capabilities:
- Operating depth: up to 2,000 m
- Laying cables
- Cutting and recovery of cables laid on the seabed
Trenching Performance
- Power: 125 hp
- Umbilical cable: reinforced with steel armor
- Profondità operativa: fino a 2.000 m

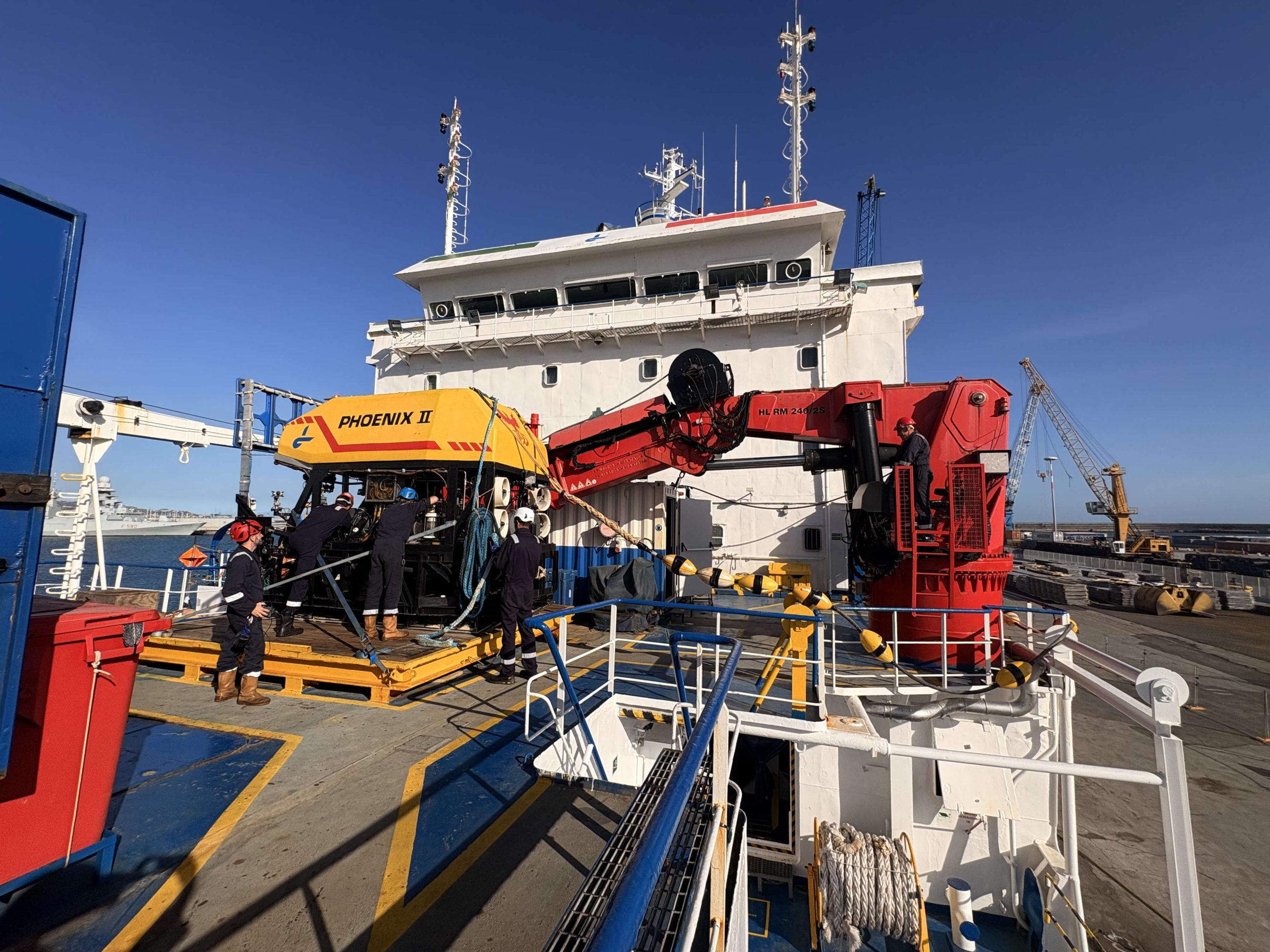

The ROV is supported by a comprehensive infrastructure for launch, recovery and operational management, including:
- Sistema LARS (Launch and Recovery System)
- Hydraulic Power Unit
- Diesel-electric generator
- Navigation and communication system (Marisat)
- Containers equipped for operation and maintenance/repair
The Phoenix II is equipped with the advanced Innovatum Ultra system for the identification, tracing and monitoring of submarine cables during burial operations and maintenance and inspection interventions
Innovatum Ultra uses:
- Gradiometers
- Triaxial magnetometric sensors
- HP 382 Computer
- High-resolution graphics
- Integrated data storage systems
Main features
Profondità: 2.000 metri
Carico utile: 200 kg
Propulsione (eliche): 4 assiali, 4 verticali, 2 laterali
Propulsion: fino a 3 nodi
Unità di potenza idraulica: 125 HP (2 unità da 62.5 HP)
Length: 4.80 m
Larghezza: 2.08 m m
Width (excluding tracks):: 2.60 m
Peso (in aria): 6.820 kg
Sistema di tracking: Innovatum Ultra
Manipulators:
- 1 – manipolatore a 7 funzioni RSI 7
- 1 – manipolatore a 5 funzioni RSI 5
Burying:
- Max profondità di interro 150 cm
- Velocità da 50 a 400 m/h
Spaziatura di jetting: da 12.5 a 50 cm
